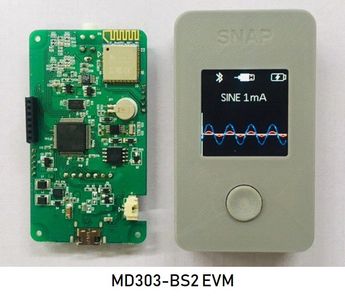

Features                    *  optional

• SNAP BOARD : 연구용 tCS  뇌자극 보드
• Processor :  STM32F303, ARM Cortex-M4 32b MCU+FPU,  256KB Flash+40KB SRAM, 4ADCs, 3DACs
• Display : OLED display, 128(RGB) x 128
• Output : DC up to 6mA@5Kohm

                      AC up to 10mA@3Kohm,  up to 1MHz

• Waveform : Sinus, Pulse, Random noise
• Connectivity :  BLE4.2 and WI-FI 802.11 b/g/n*
• Programs : Windows 10, Android / iOS*

Features

• Migraine : 편두통 케어 보드
• waveform : biphasic, rectangular, symmetrical
• Phase duration : 250usec
• Interphase interval : 5usec
• Frequency : 60Hz
• Maximum output current

            -. 16mA @ up to 4Kohms

            -. 6mA @ up to 10Kohms

Time parameters

• Ramp up time : 14 minutes
• Steady time : 6 minutes
• Ramp down time : 45 seconds
• Ramp down time after abort : 0 seconds
• Session duration : 20 minutes 45 seconds

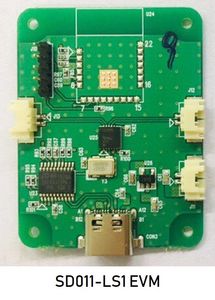

Features

• 레일변위측정 보드
• can measure <1mm changes
• 2ch 28-Bit LDC (inductance to digital converters)
• Remote sensor position of >20cm in harsh environments
• Wide sensor frequency range of 1KHz to 10MHz
• Power consumption :

             -. 35uA low power sleep mode

             -. 200nA shutdown mode

• Immunity to DC Magnetic fields and Magnets
